Touch Screen HMI 20 Pallets/H Rotary Arm Stretch Wrapper
Control System:
· Counter to count pallets be wrapped
· Photo-eye pallet height sensor
· Parameter separate setting:
Top wrap times, Bottom wrap times, Carriage up/down times, Reinforce wraps, Over-wrap
· Reinforce wrap allow more wrap on same location
· Over-wrap provide more wrap over the top of loads
· Powered pre-stretch film carriage up to 400% (1:4)
· Cycle pause capacity
· Film tension, Turntable speed, Carriage speed separate adjustment from the control panel
· Separate Auto-Start/Reset, Pause & E/S buttons
Main features of Rotary Arm Stretch Wrapper
- No Film Break Delivery Systems
- Load Seeking Clamp 4.0
- No Film Tail Automation Unit
- 1 Year warranty, bumper to bumper
- Auto Tuning
- Pallet Grip
Safety
- Complete safety guarding.
- Zero motion operator access gate.
- Category 3 safety circuit.
- Safety light curtains on in feed and exit conveyor.
Uptime
- No commutator rings
- No load cells
- No drive boards
- Less operator intervention
- Comprehensive diagnostics
- Auto Tuning
Specifications of Rotary Arm Stretch Wrapper
| Name | Touch Screen HMI 20 Pallets/H Rotary Arm Stretch Wrapper |
| Pallet size | W(500-1200)mm * L(500-1200)mm |
| Wrapping height | 1800mm |
| Packing speed | 30-35 pallets/h |
| Rotation speed | 0-20rpm/h |
| Air pressure | 0.4-0.7Mpa |
| Cut method | heater |
| Control | PLC+touch screen+inverter |
| Working mode | fully automatic unmanned |
| Top sheet pulling speed | 12m/min |
| Top sheet size | W180mm,length adjustable |
| Conveyor speed | 0-12m/min |
| Power | 3PH 380VAC,50/60HZ,20A,2.5kw |
| Dimension | 3200*3220*3120mm |
| Machine weight | 1800kg |

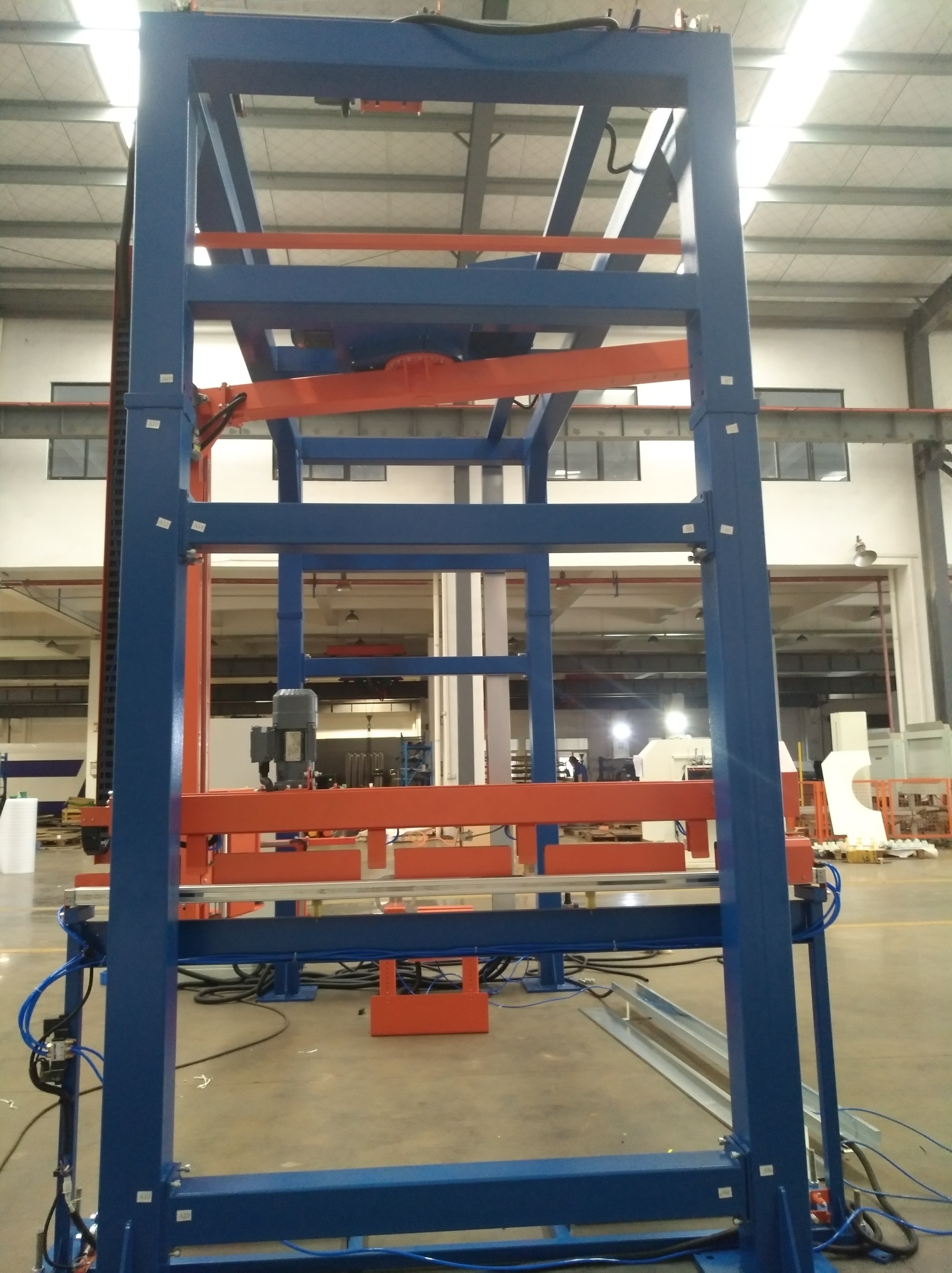

Rotary Arm Stretch Wrapper Details
Service
1. Pre-sale service:
1) We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use and purchase budge.
2. In-sale service:
1) We will supply each manufacturing step photo for customer checking on time.
2) We will prepare packing and shipment according to customer's needing inadvance.
3) Testing the machine and making video for customer's checking.
3. After-sale service:
1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on technology in time.
